Lösung:
Fortgeschrittenen-Kurs TNC 4xx

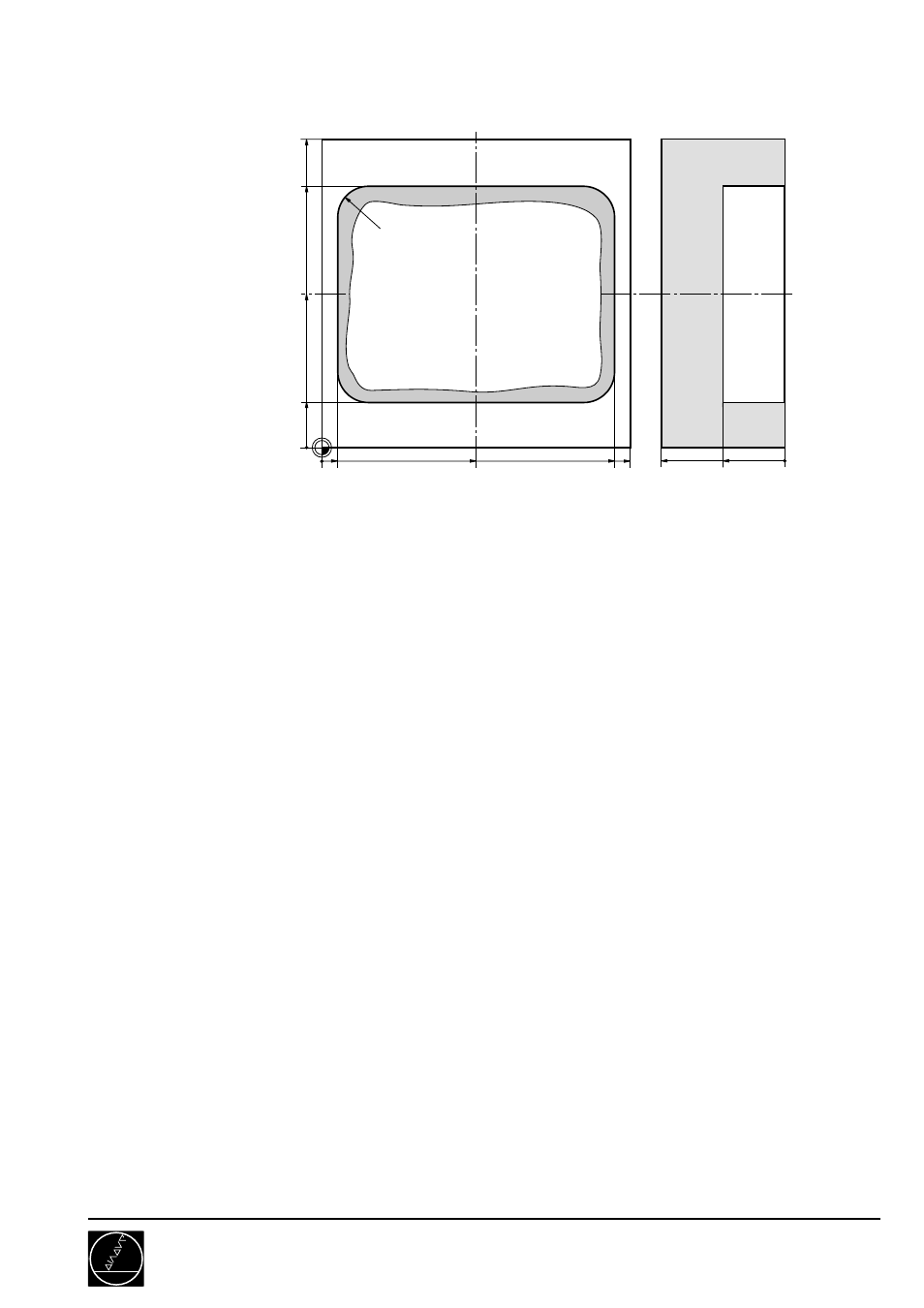

Rechtecktasche fertig fräsen
7286/3
C01
Freifahren, Ende
100
100
0
95
0
85
40
0
50
50
15
5
R10
20
HAUPTPROGRAMM
0 BEGIN PGM 7286 MM
1 FN 0: Q1 = +50 ......................................................... X-MITTE
2 FN 0: Q2 = +50 ......................................................... Y-MITTE
3 FN 0: Q3 = +90 ......................................................... LAENGE X
4 FN 0: Q4 = +70 ......................................................... BREITE Y
5 FN 0: Q5 = +20 ......................................................... TIEFE Z
6 FN 0: Q6 = +10 ......................................................... ABRUNDUNG
7 FN 0: Q7 = +1000 ..................................................... VORSCHUB Z
8 FN 0: Q8 = +300 ....................................................... VORSCHUB EBENE
9 FN 0: Q9 = +2 ........................................................... Z-SICHERHEIT
10 BLK FORM 0.1 Z X+0 Y+10 Z-40
11 BLK FORM 0.2 X+100 Y+90 Z+0
12 TOOL DEF 1 L+0 R+5
13 TOOL CALL 1 Z S2800
14 L Z+10 R0 F9998 M3
15 CALL LBL 1
16 L Z+50 R0 M2
