Lösung:
Fortgeschrittenen-Kurs TNC 4xx

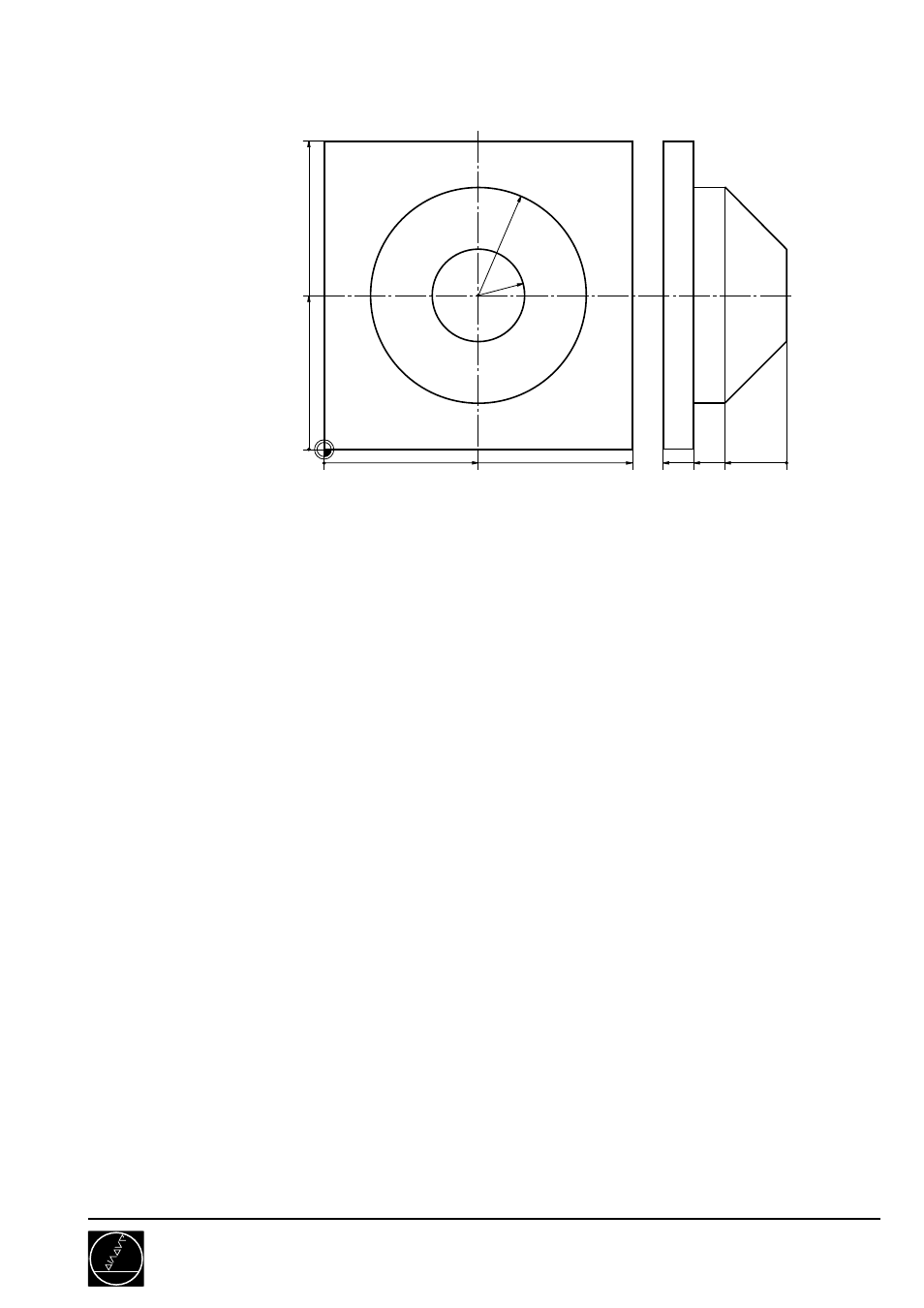

Kegelstumpf stehend, 2½ D horizontal,
Außenform mit Schaftfräser
7162/4
C09
100
20
0
100
0
50
0
50
R35
40 30
R15
0 BEGIN PGM 7162 MM
1 ................................................................................. STEHENDER KEGELSTUMPF 2½ D
2 ................................................................................. HORIZ., SCHAFTFRAESER
3 BLK FORM 0.1 Z X+0 Y+10 Z-31
4 BLK FORM 0.2 X+100 Y+100 Z+0
5 TOOL DEF 1 L+0 R+10
6 TOOL CALL 1 Z S2000
7 CC X+50 Y+50
8 L Z+20 R0 F9999 M3
9 LP PR+65 PA+0
10 L Z+2
11 LBL 1
12 LP IPR-5 RL F200
13 L Z-30
14 CP IPA-360 DR- RL F300 M98
15 CALL LBL 1 REP 5/5
16 L Z+20 R0 F9999 M6
17 TOOL DEF 2 L+0 R+10
18 TOOL CALL 2 Z S2800
19 L Z+20 R0 F9999 M3
20 LP PR+15 PA+0 R0 F9999 M3
21 LP IPR+Q108
22 L Z+2
23 L Z+0 F150
24 LBL 2
25 LP IPR+1
26 L IZ-1 F200
27 CP IPA-360 DR- F1000 M98
28 CALL LBL 2 REP 19/19
29 L Z+20 R0 F9999 M2
30 END PGM 7162 MM
