Lösung:
Fortgeschrittenen-Kurs TNC 4xx
1 Lochkreis parametrisch,
1 Werkzeug, 1 Zyklus (Zentrieren)
7416/3
C05
HAUPTPROGRAMM
0 BEGIN PGM 7416 MM
1 ................................................................................. 1 LOCHKREIS
2 BLK FORM 0.1 Z X+0 Y+10 Z-22
3 BLK FORM 0.2 X+100 Y+90 Z+0
4 TOOL DEF 1 L+0 R+3,5
5 TOOL CALL 1 Z S1000
6 L Z+10 R0 F9999 M3
7 CYCL DEF 1.0 TIEFBOHREN ................................... ZYKLUSTYP UND ZYKLUSWERTE
8 CYCL DEF 1.1 ABST -Q6
9 CYCL DEF 1.2 TIEFE -2
10 CYCL DEF 1.3 ZUSTLG -2
11 CYCL DEF 1.4 V.ZEIT 0
12 CYCL DEF 1.5 F100
13 FN 0: Q1 = +50 ......................................................... X-MITTE
14 FN 0: Q2 = +50 ......................................................... Y-MITTE
15 FN 0: Q3 = +20 ......................................................... RADIUS
16 FN 0: Q4 = +10 ......................................................... ANZAHL
17 FN 0: Q5 = +0 ........................................................... STARTWINKEL
18 FN 0: Q6 = +2 ........................................................... Z-SICHERHEIT, FERTIGUNGSW.
19 CALL LBL 1
20 L Z+20 R0 F9998 M2 ................................................ RUECKSPRUNG
21 LBL 1
22 FN 0: Q25 = +Q5
23 FN 0: Q24 = +1
24 CC X+Q1 Y+Q2
25 FN 4: Q26 = +360 DIV +Q4
26 LP PR+Q3 PA+Q5 R0
27 L Z+Q6 M99
28 LBL 2
29 FN 1: Q25 = +Q25 + +Q26
30 FN 1: Q24 = +Q24 + +1
31 LP PR+Q3 PA+Q25 M99
32 FN 12: IF +Q24 LT +Q4 GOTO LBL 2
33 LBL 0
34 END PGM 7416 MM

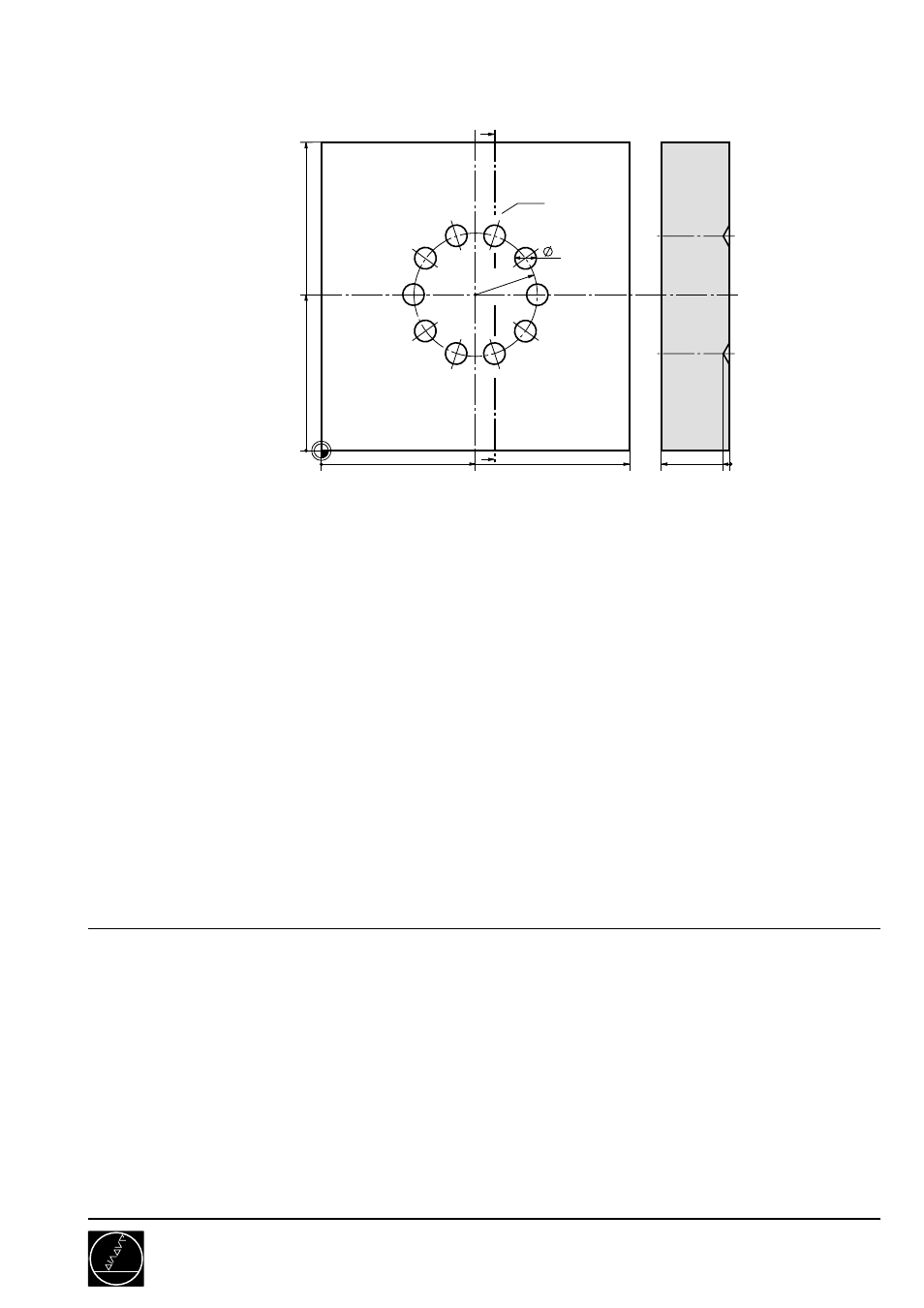

UP, LOCHKREIS
Zentrieren
Geometriedaten
Freifahren, Ende
100
22
0
100
0
50
50
0
R20
10 x
0°
2
7
