Lösung:
Fortgeschrittenen-Kurs TNC 4xx

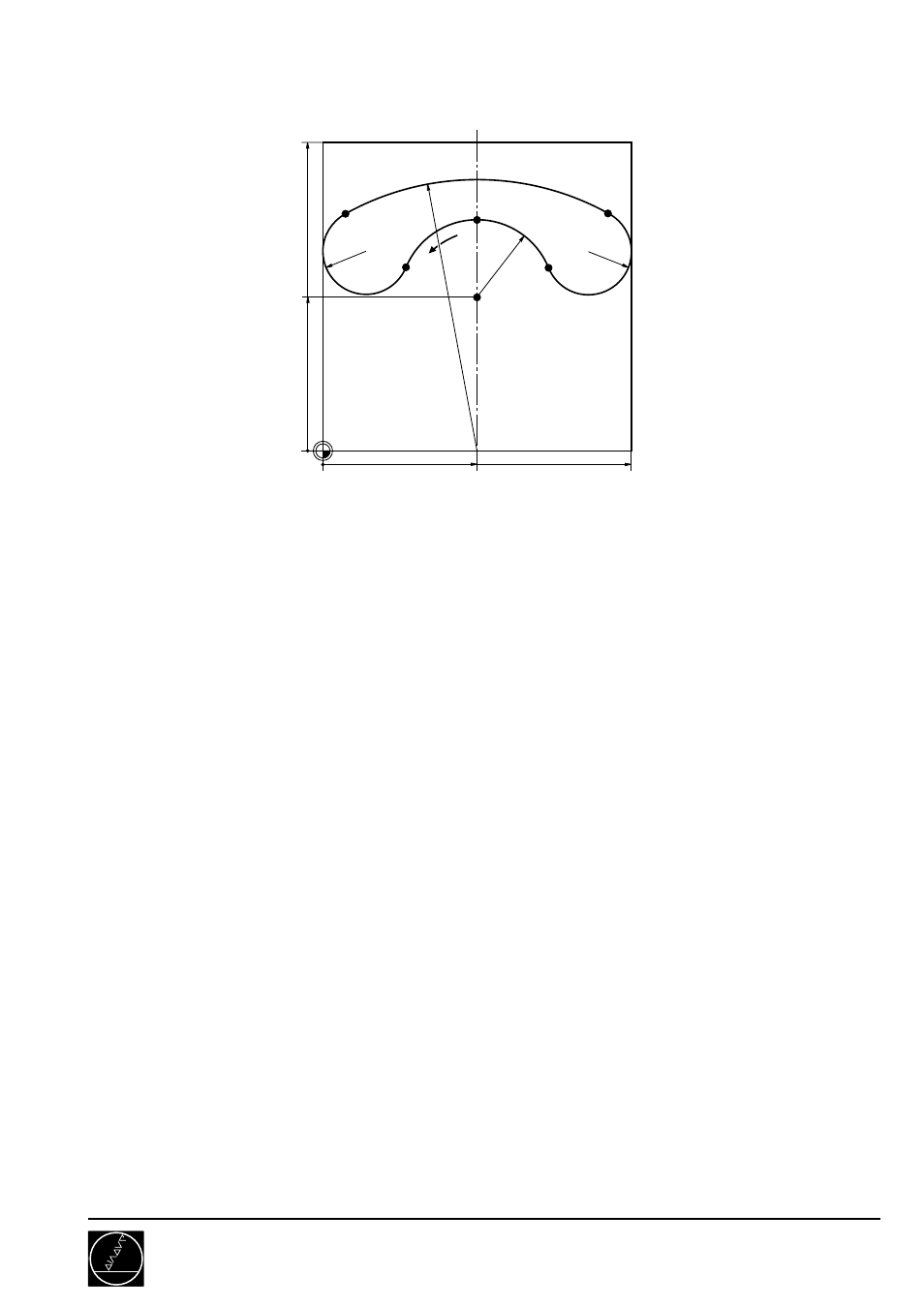

FK Telefon
75103/2
C01
100
100
0
50
0
50
➁
➂
➀
R14
R14
R25 R88
Start (R0)
➅
➃
➄
FK-Programm
0 BEGIN PGM 75103 MM
1 BLK FORM 0.1 Z X+0 Y+50 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+10
4 TOOL CALL 1 Z S2800
5 L X+50 Y+50 R0 F9999 M13
6 L Z-5 F100
7 L X+50 Y+75 RL .......................................................
8 RND R5 F100
9 FC DR+ R25 CCX+50 CCY+50 F500 ........................
10 FCT DR- R14 ............................................................
11 FCT DR- R88 CCX+50 CCY+0 ..................................
12 FCT DR- R14 ............................................................
13 FCT X+50 Y+75 DR+ R25 CCX+50 CCY+50 ............
14 FSELECT 2
15 RND R5 F100
16 L X+50 Y+50 R0 M9
17 L Z+10
18 END PGM 75103 MM
Konvertiertes Programm
0 BEGIN PGM BOGEN MM
1 BLK FORM 0.1 Z X+0 Y+0 Z–20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+3
4 TOOL CALL 1 Z S2800
5 L X+50 Y+50 R0 F9999 M13
6 L Z-5 F100
7 L X+50 Y+75 RL .......................................................
8 RND R5 F100
9 CC X+50 Y+50
10 C X+26,805 Y+59,3269 DR+
11 CC X+13,8158 Y+64,55
12 C X+6,9701 Y+76,7622 DR–
13 CC X+50 Y+0
14 C X+93,0299 Y+76,7622 DR–
15 CC X+86,1842 Y+64,55
16 C X+73,195 Y+59,3269 DR–
17 CC X+50 Y+50
18 C X+50 Y+75 DR+
19 RND R5 F100
20 L X+50 Y+50 R0 M9
21 L Z+10
22 END PGM BOGEN MM
➀
➁
➂
➃
➄
➅
