Installation
6 · G&D DL-Vision(M/S)

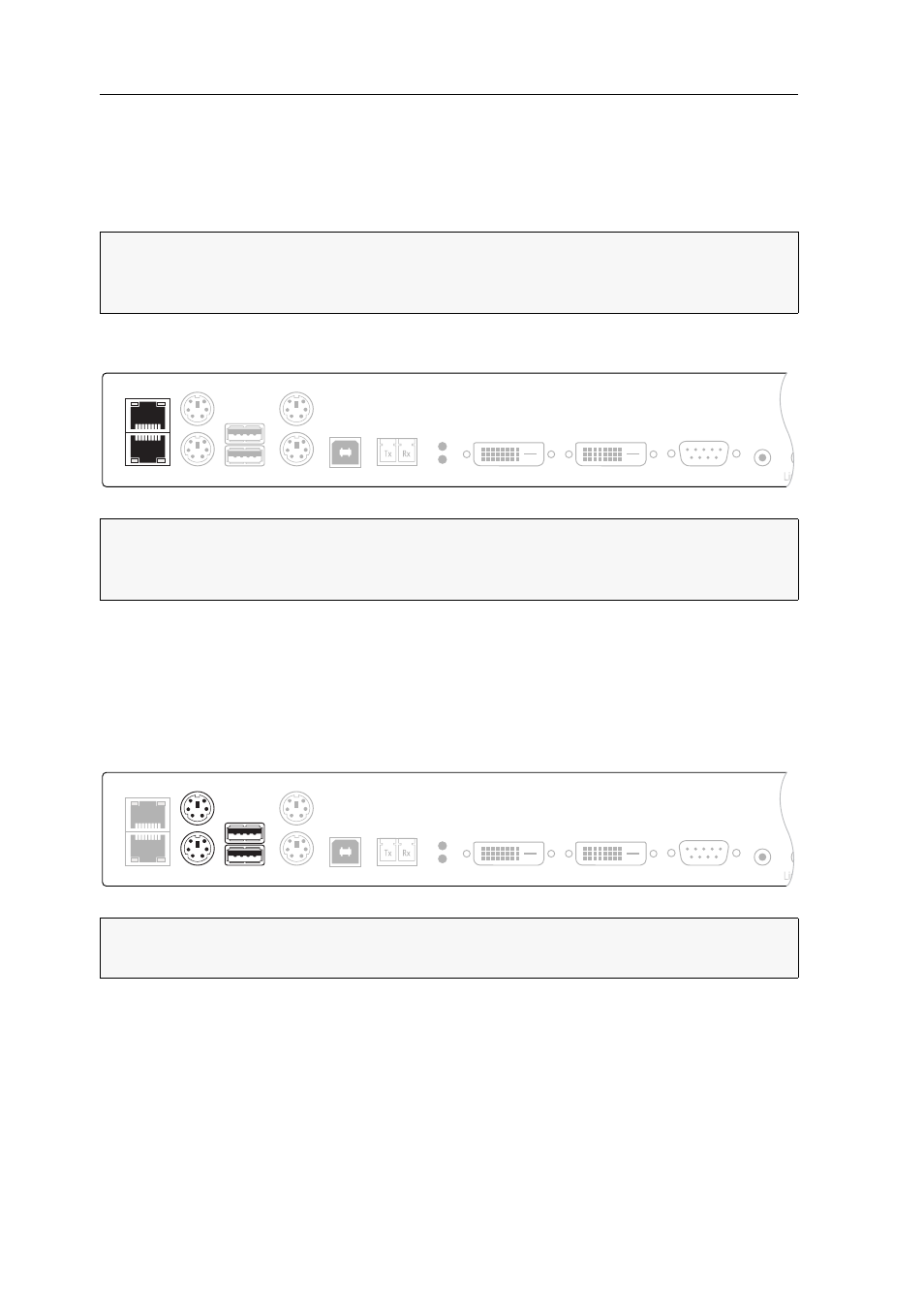

Installing the computer module
The computer, whose signals are transmitted to the remote console, is connected to
the DL-Vision-CPU computer module. A local console can optionally be connected to
the computer module.
Establishing a connection to up to two local networks
Network A: Insert a category 5 twisted pair cable (or better), which is available as acces-
sory. Connect the other end of the cable to the local network.
Network B: Insert a category 5 twisted pair cable (or better), which is available as acces-
sory. Connect the other end of the cable to the local network.
Connecting keyboard and mouse to the local console
Mouse: Connect the PS/2 mouse of the local console.
Keyb.: Connect the PS/2 keyboard of the local console.
USB K/M: Connect the USB mouse and/or the USB keyboard of the local console.
ADVICE: Connect the cables to the computer module preferably from left to right.
By doing so, you will avoid already connected cables blocking your view of the
interfaces.
NOTE: If desired, connect the network interface to up to two local networks. Now
you can not only access the Config Panel web application from those networks but
also send syslog messages to those networks.
NOTE: If you want to create a local console at the computer module, connect
either PS/2 (Mouse or Keyb. interfaces) or USB devices (USB K/M interfaces).
Network B
Network A DVI-D DL Out Video
Link
USB K/M Transmission Keyb.
Mouse
Keyb. CPU
Mouse CPU
USB CPU RS232 DVI-D DL CPU Line In
Keyb.
Mouse
USB K/M
Network B
Network A DVI-D DL Out Video
Link
Transmission Keyb. CPU
Mouse CPU
USB CPU RS232 DVI-D DL CPU Line In
