Installation
G&D DL-Vision(M/S) · 9
English

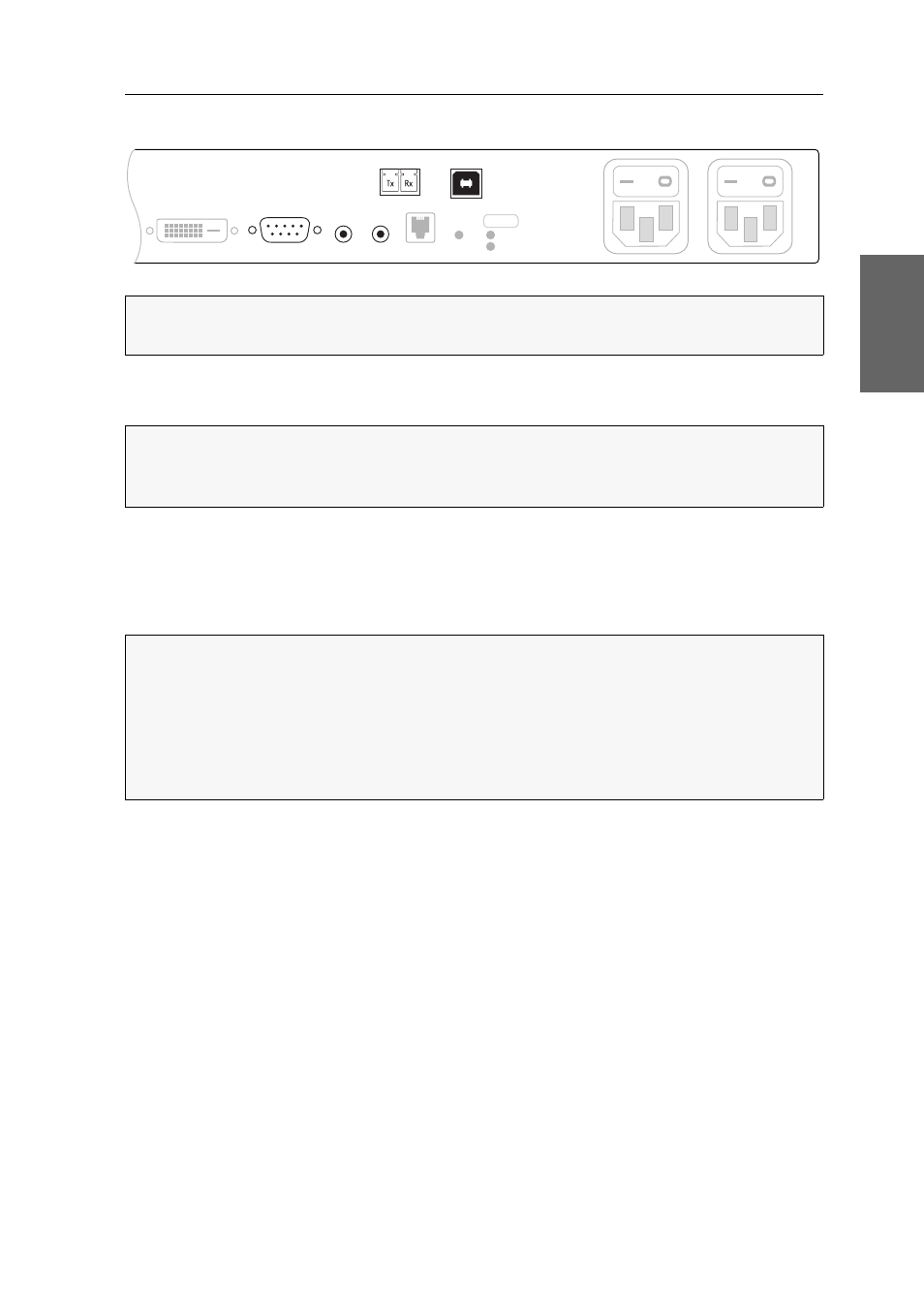

Additional interfaces of expanded variants
RS232: Use the RS232-M/F-2 cable to connect one of the computer’s 9-pin serial
interfaces to this interface.
Line In: Use an Audio-M/M-2 cable to connect the computer’s Line-Out interface to
this interface.
Line Out: Use the RS232-M/F-2 cable to connect the computer’s Line-In interface to
this interface.
USB 2.0 Trans.|Tx: Plug the LC plug of a fibre optic cable, which is available as acces-
sory, into this interface. Connect the other end to the USB 2.0 Trans.|Rx interface of
the user module.
USB 2.0 Trans.|Rx: Plug the LC plug of another fibre optic cable into this interface.
Connect the other end to the USB 2.0 Trans.|Tx interface of the user module.
USB 2.0 CPU: Use the USB-AM/BM-2 cable to connect one of the computer’s USB
interfaces to this interface.
IMPORTANT: The interfaces listed in this paragraph are only provided at certain
variants.
NOTE: Each video channel of the MultiChannel variant is prvided with one RS232
interface. The numbers behind the interface names assign each interface to a given
channel.
IMPORTANT: Transmission modules transmit the data of the USB devices con-
nected to the USB 2.0 Devices interfaces at the user module between the user module
and the computer module (and vice versa). Those transmission modules use laser
technology complying with laser class 1
Please note the following safety instructions regarding this matter:

Only use G&D certified transmission modules on page 2
RS232 Line In Line Out
USB 2.0 Trans. USB 2.0 CPU
Red. Power Main Power
DVI-D DL CPU Power Card
Power
Red.
Main
Ident.
