Installation
12 · G&D DL-Vision(M/S)
Transmission|Rx: Insert the LC plug of the fibre optic cable, which is connected to the
Transmission|Tx interface of the computer module.

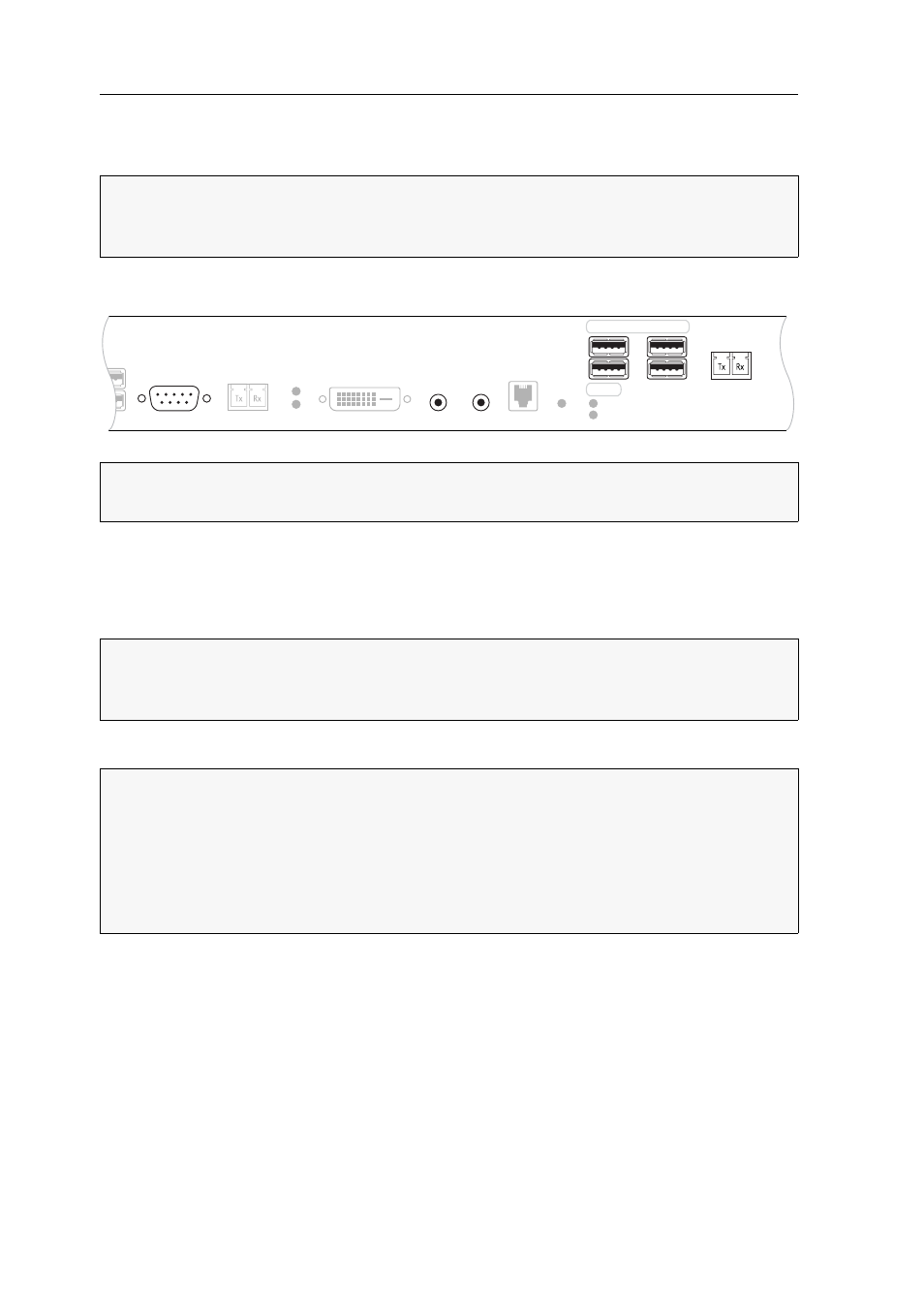

Additional interfaces of expanded variants
Micro In: Connect a microphone to this interface if desired.
Speaker: Connect the console speakers or another audio output device to this interface.
RS232: Connect the serial end device to this interface.
USB 2.0 Devices: Connect any USB device to these four interfaces.
USB 2.0 Trans.|Tx: Plug the LC plug of the fibre optic cable, which is connected to the
USB 2.0 Trans.|Rx interface of the computer module into this interface.
USB 2.0 Trans.|Rx: Plug the LC plug of the fibre optic cable, which is connected to the
USB 2.0 Trans.|Tx interface of the computer module into this interface.
NOTE: Each video channel of the MultiChannel variant is provided with one Transmis-
sion interface. The numbers behind the interface names assign each interface to a
given channel.
IMPORTANT: The interfaces listed in this paragraph are only provided at certain
variants.
NOTE: Each video channel of the MultiChannel variant is provided with one RS232
interface. The numbers behind the interface names assign each interface to a given
channel.
IMPORTANT: Transmission modules transmit the data of the USB devices con-
nected to the USB 2.0 Devices interfaces at the user module between the user module
and the computer module (and vice versa). Those transmission modules use laser
technology complying with laser class 1.
Please note the following safety instructions regarding this matter:

Only use G&D certified transmission modules on page 2
RS232 Micro In Speaker
USB 2.0 Devices USB 2.0 Trans.
DVI-D DL Out Control Panel Video
Link
Transmission
Power
Red.
Main
Ident.
M
