Installation
G&D DL-Vision(M/S) · 11
English

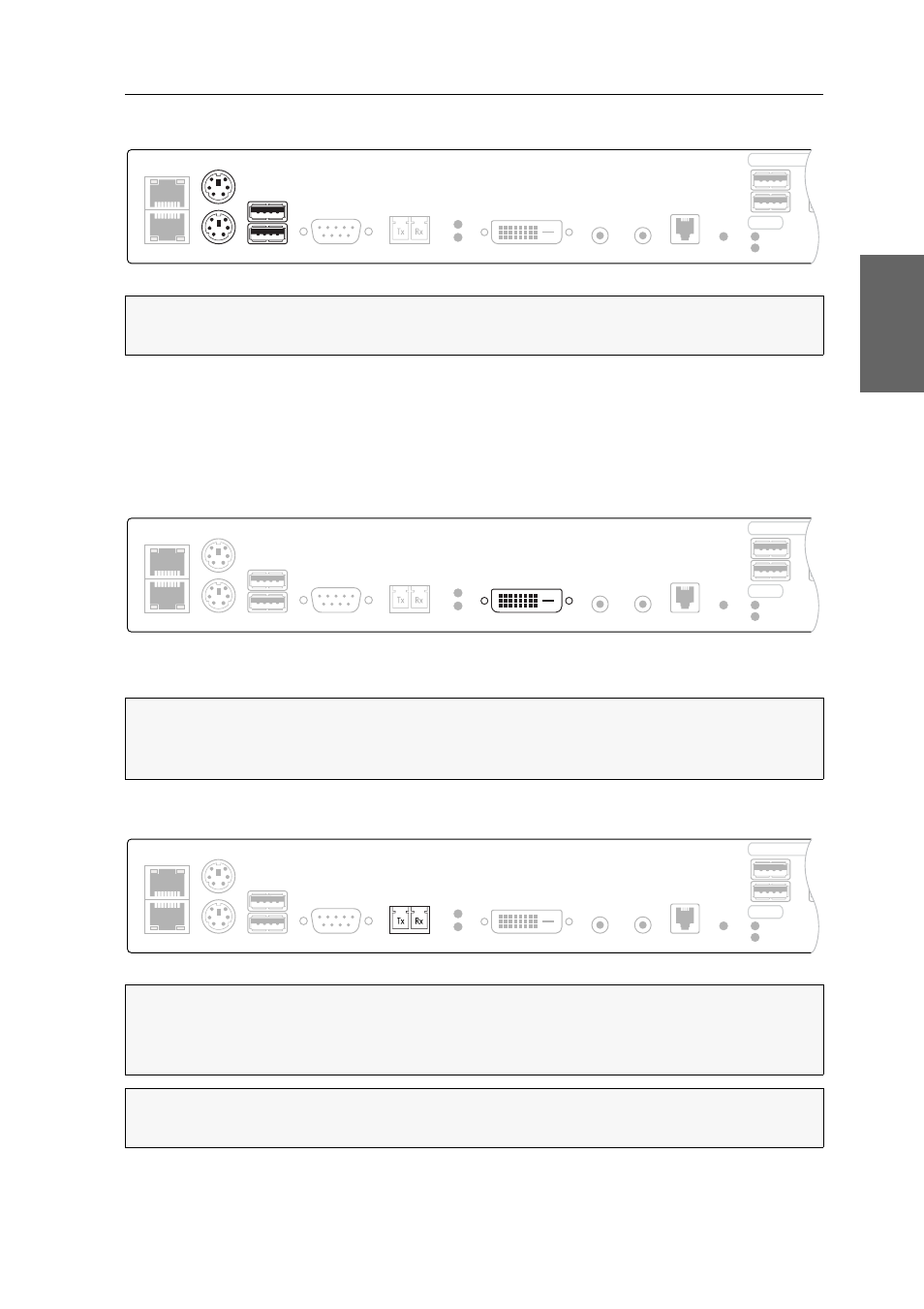

Connecting keyboard and mouse to the console
Mouse: Connect the PS/2 mouse of the local console.
Keyb.: Connect the PS/2 keyboard of the local console.
USB K/M: Connect the USB mouse and/or the USB keyboard of the local console
Connecting the console monitor
DVI-D DL Out: Connect the console monitor.
Establishing a connection to the computer module
Transmission|Tx: Insert the LC plug of the fibre optic cable, which is connected to the
Transmission|Rx interface of the computer module.
NOTE: You can use either PS/2 (Mouse or Keyb. interfaces) or USB devices (USB K/
M interfaces) at the console.
NOTE: Each video channel of the MultiChannel variant is provided with one
DisplayPort Out interface. The numbers behind the interface names assign each inter-
face to a given channel.
IMPORTANT: The device uses components with laser technology which comply
with laser class 1.
Never stare into the invisible laser beam when wearing optical instruments!
NOTE: Remove the protection caps from the Transmission interface and the cable
plugs.
Keyb. USB K/M
Mouse Network B
Network A RS232 DVI-D DL Out Micro In Speaker Control Panel Video
Link
Transmission
USB 2.0 D
Power
Red.
Main
Ident.
DVI-D DL Out
Network B
Network A RS232 Micro In Speaker Control Panel Video
Link
USB K/M Transmission Keyb.
Mouse USB 2.0 D
Power
Red.
Main
Ident.
Transmission
Network B
Network A RS232 DVI-D DL Out Micro In Speaker Control Panel Video
Link
USB K/M Keyb.
Mouse USB 2.0 D
Power
Red.
Main
Ident.
