STANDARD-KOMPONENTEN
20
HySpeed HT2000
Betriebsanleitung
9-13

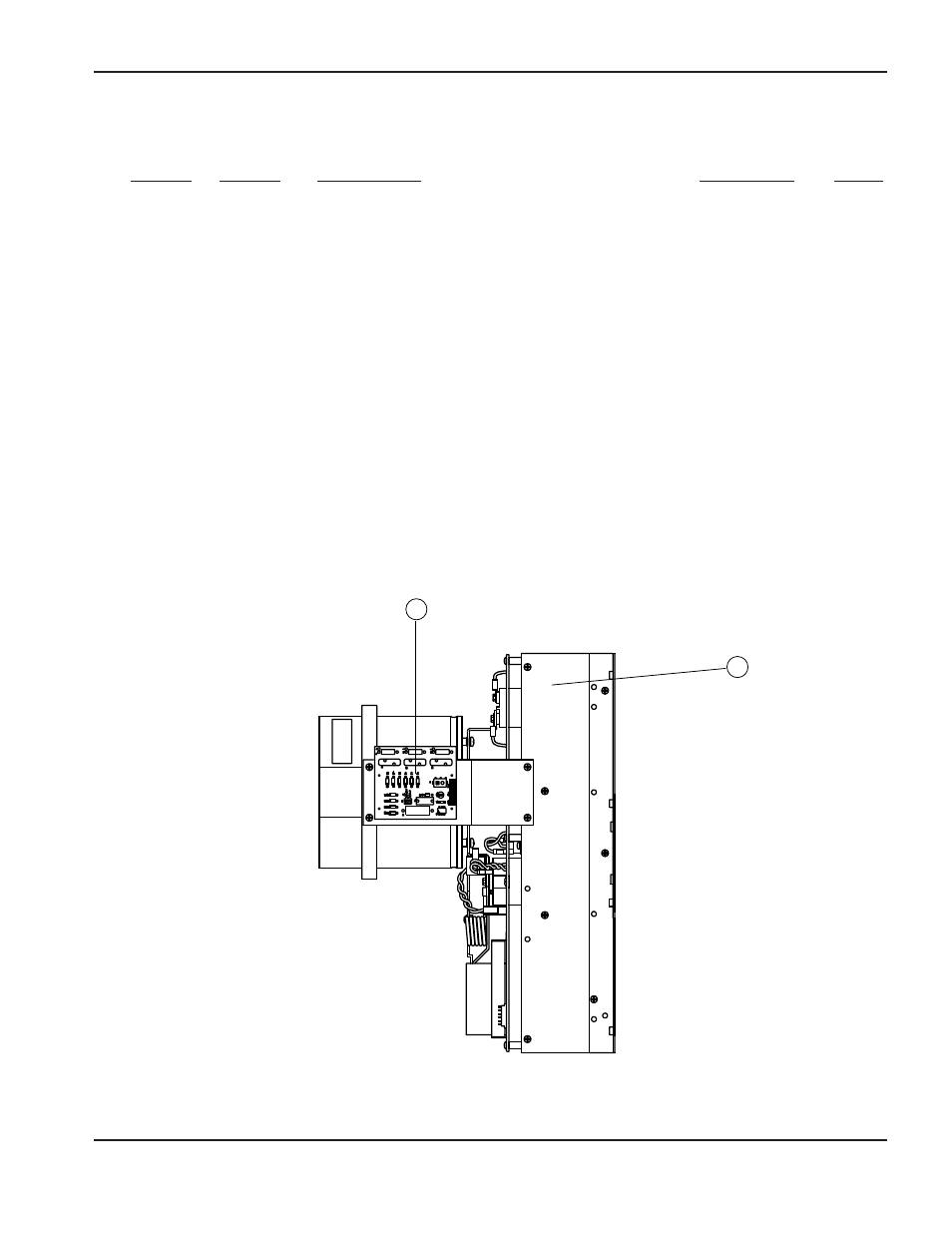

Abbildung 9-6A
Chopper CH2 – rechte Seite
HT2000-Stromquelle
ቢ
: Innenseite der Vorderwand
Teile-
Position
nummer
Beschreibung
bestimmt für
Menge
1
129118
CH130 CE/LVD Chopper SA
CH1
1
005199
Temperature Switch 82°C
TSW1
1
2
129118
CH130 CE/LVD Chopper SA
CH2
1
005199
Temperature Switch 82°C
TSW2
1
3
008509
Bushing 1.75 MTG X 1.37 ID
3
4
041564
PCB Assy:Phase Loss Detection Circuit
1
4
2
