STANDARD-KOMPONENTEN

22

HySpeed HT2000

Betriebsanleitung

9-51

HySpeed HT2000-Verschleissteilsatz Nr. 128825

Teile-

Position

nummer

Beschreibung

Menge

128825

Kit: HySpeed HT2000 Consumable Parts

001067

Box: Gray Plastic

1

1

220239

Shield, Hyspeed 200A

1

1

020424

Shield, 200A

1

1

020448

Shield, 100A

1

2

220242

Nozzle Retaining Cap with IHS tab, HySpeed 200A

1

2

120837

Nozzle Retaining Cap, with IHS tab

1

3

220237

Nozzle, Hyspeed 200A

3

3

020690

Nozzle, 100A .055 O2

2

4

020608

Nozzle, 200A .086 Air/N2/H35

3

4

020611

Nozzle, 100A .059 Air

3

5

220236

Swirl RIng: Hyspeed 200A

1

6

020607

Swirl Ring, Air/N2/H35

1

6

020613

Swirl Ring, Air

1

6

020679

Swirl Ring, Air/N2

1

7

220235

Electrode: HySpeed 200A

3

7

120667

Electrode: HT2000 200A Oxy LL

2

7

020415

Electrode, N2/H35

2

7

120547

Electrode: HT2000 100A LL

2

8

020963

Water Tube:PAC200T/2000 Electd Cool

1

027055

Lubricant, Silicon, 1/4 Oz Tube

1

027194

Wrench, Nozzle, 3/4"

1

027524

Wrench, Nozzle, 1"

1

044027

O-Ring, Buna-N

2

027347

Tool: Water Tube Removal

1

004147

Electrode Gauge Assy

1

1

2

5

3

4

6

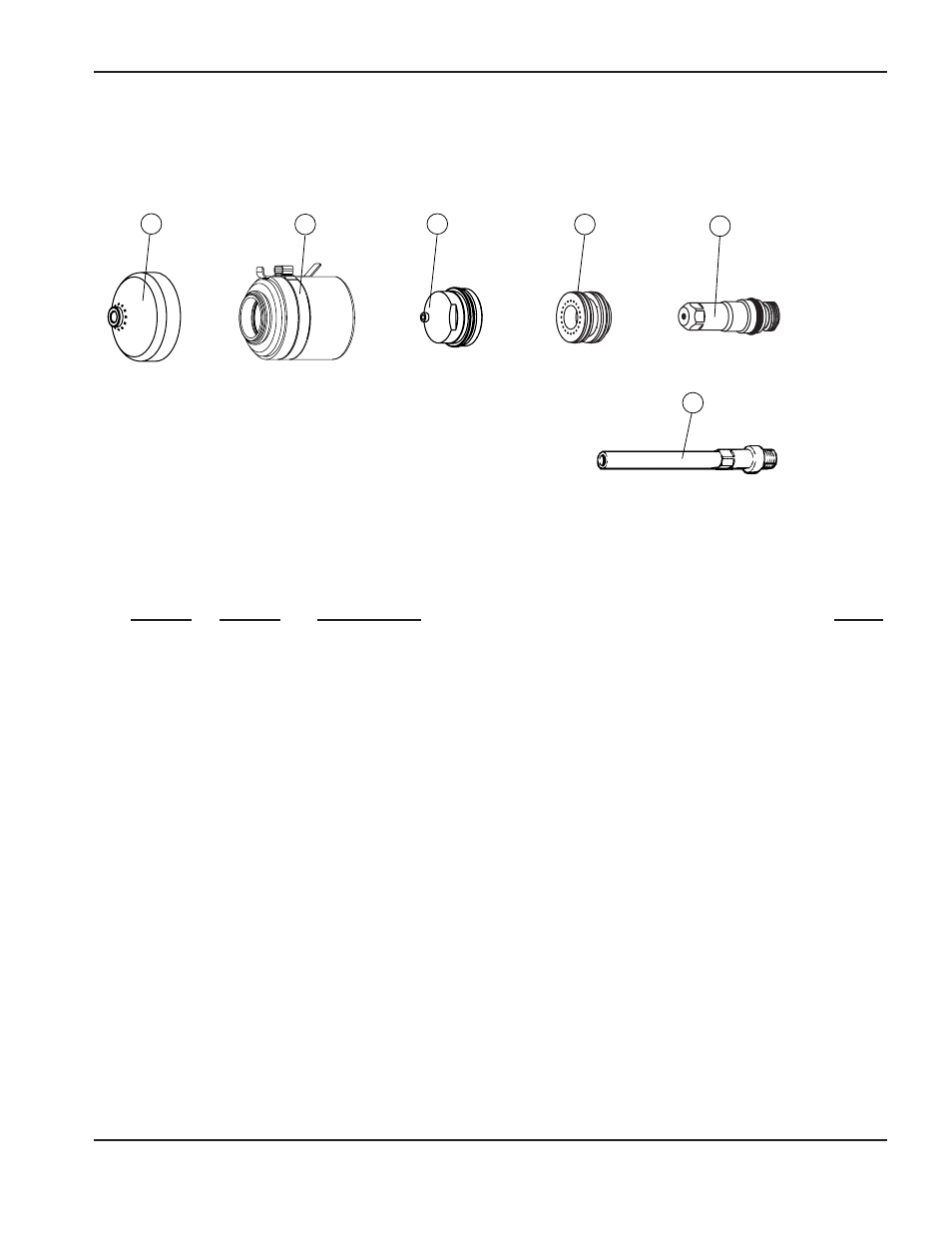

Abbildung 9-50

HySpeed HT2000 Verschleißteile
