STANDARD-KOMPONENTEN
20
HySpeed HT2000
Betriebsanleitung
9-35

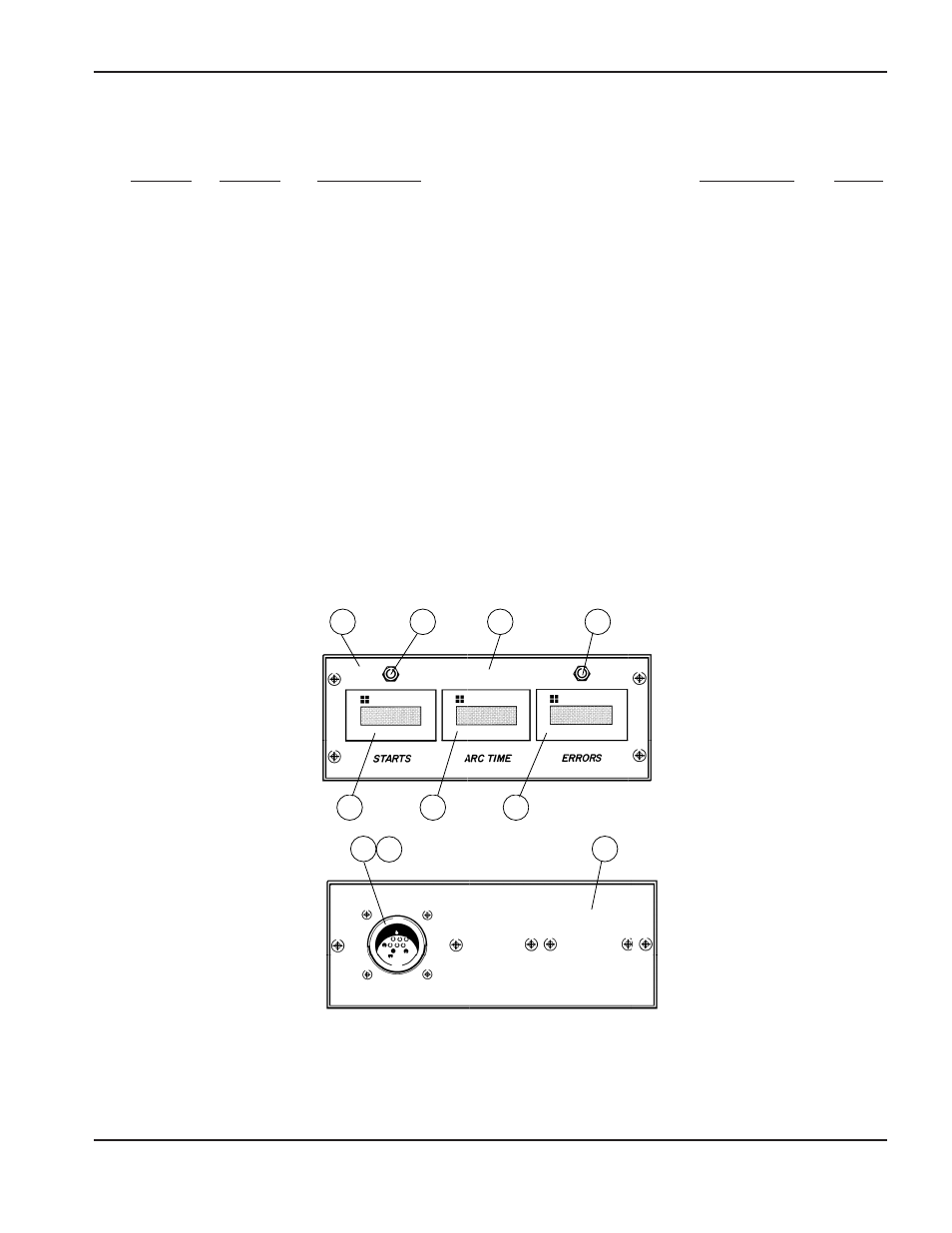

Abbildung 9-19
Timer/Zähler
Timer/Zähler
ቩ
Nr. 073194
Teile-
Position
nummer
Beschreibung
bestimmt für
Menge
073194
HT2000 Cntr-Tmr
1
001068
Encl:DCC/PCC/RCC RVR
1
2
001391
Pnl:DCC RCVR Rear
1
3
001392
Pnl:DCC RCVR Front
1
4
005161
PB Sw:Blk SPST NO Sub-Mini
2
5
008176
Pin:24-20 AWG Type III + CRP
4
6
008193
RCPT Shell:CPC 17-16 Std Sex
11X1
1
7
027274
Counter, Self Powered LCD
2
8
027275
Meter, Elapsed Time LCD
1
–
003140
Relay:120VAC DP AU Cont
2
(
Seihe
HT2000 Verdrahtungs-Diagramme)
11X1
5
6
2
8
7
7
1
3
4
4
