3 Installation
The LwLVision System makes it possible to transmit keyboard, video and
mouse signals via 2-fibre optical fibre cable (single mode and multi mode fibre).
For this two systems are offered which are specialized in both optical fibre
cables:
 LwLVision(S) System for single mode fibre (9/125 µm)
 LwLVision(M) System for multi mode fibre (50/125 µm)

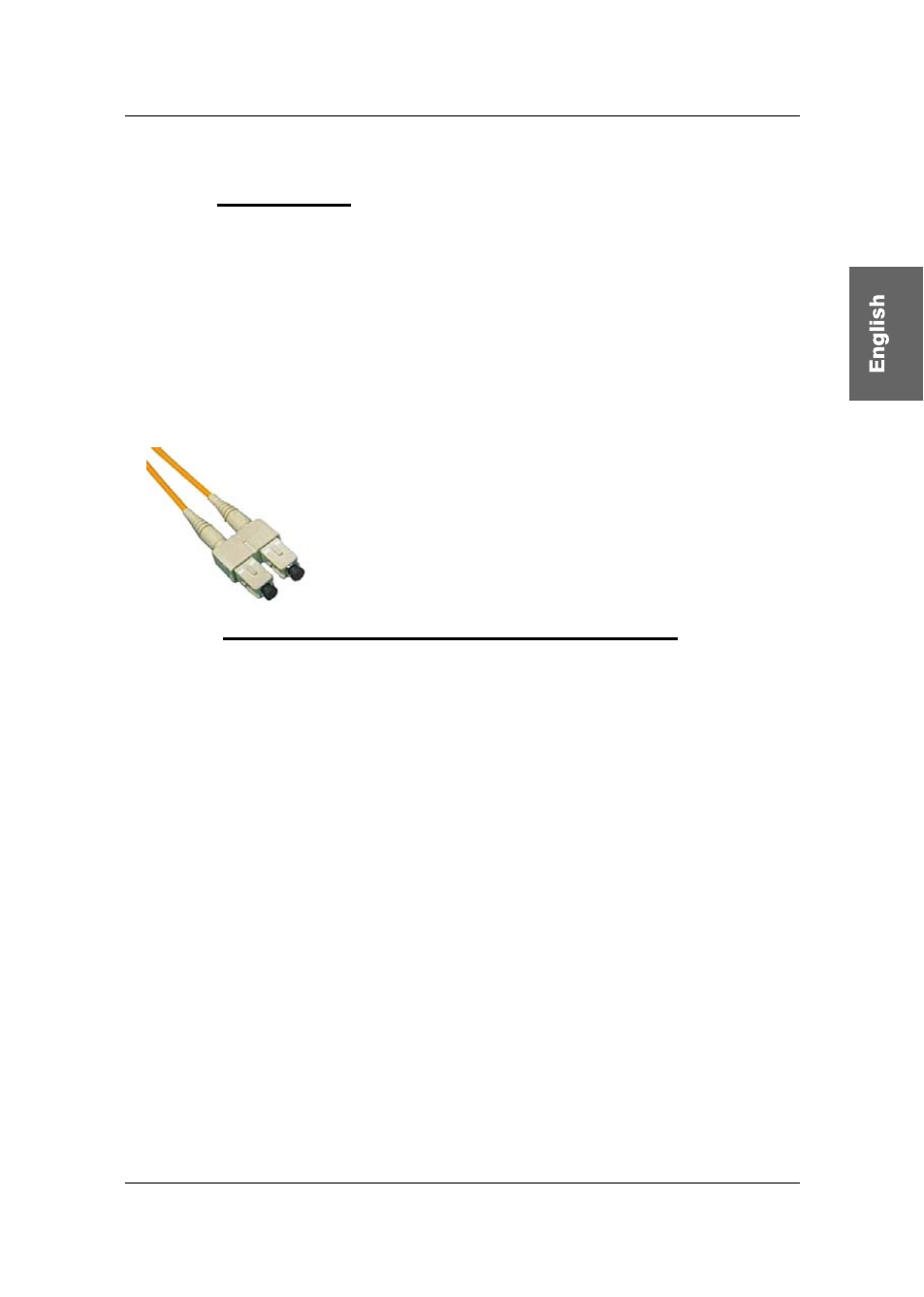

Both cables are equipped with the same kind of
connector (SC-Duplex connector) (see figure to the
left). So the installation of both systems is only different
in the use of the optical fibre cable.
Page 9
These operating instructions describe the installation of
the LwLVision(S) system.
3.1 Information to the Optical Fibre Cable
In order to guarantee best possible transmission, the following information
should be considered:
 Inner optical fibre cables are to be unwind from the spool or ring in
such a way that no knees or twists can occur.
 The valid minimum values for baffle and bending radius are not to be
crossed.
 The valid maximum tensile strain values have to correspond to the
cable type tables.
 Optical fibre cables/lines are to be laid with special care. It is
important that the fibres are neither overstretched nor compressed
because otherwise long-term damages can occur.
 Cable lengths are to be selected in such a way that mechanical
influences are avoided and also later loads are minimized.
 Optical fibre cables/lines are to be stripped steadily from the drum
without slopes and jerk.
