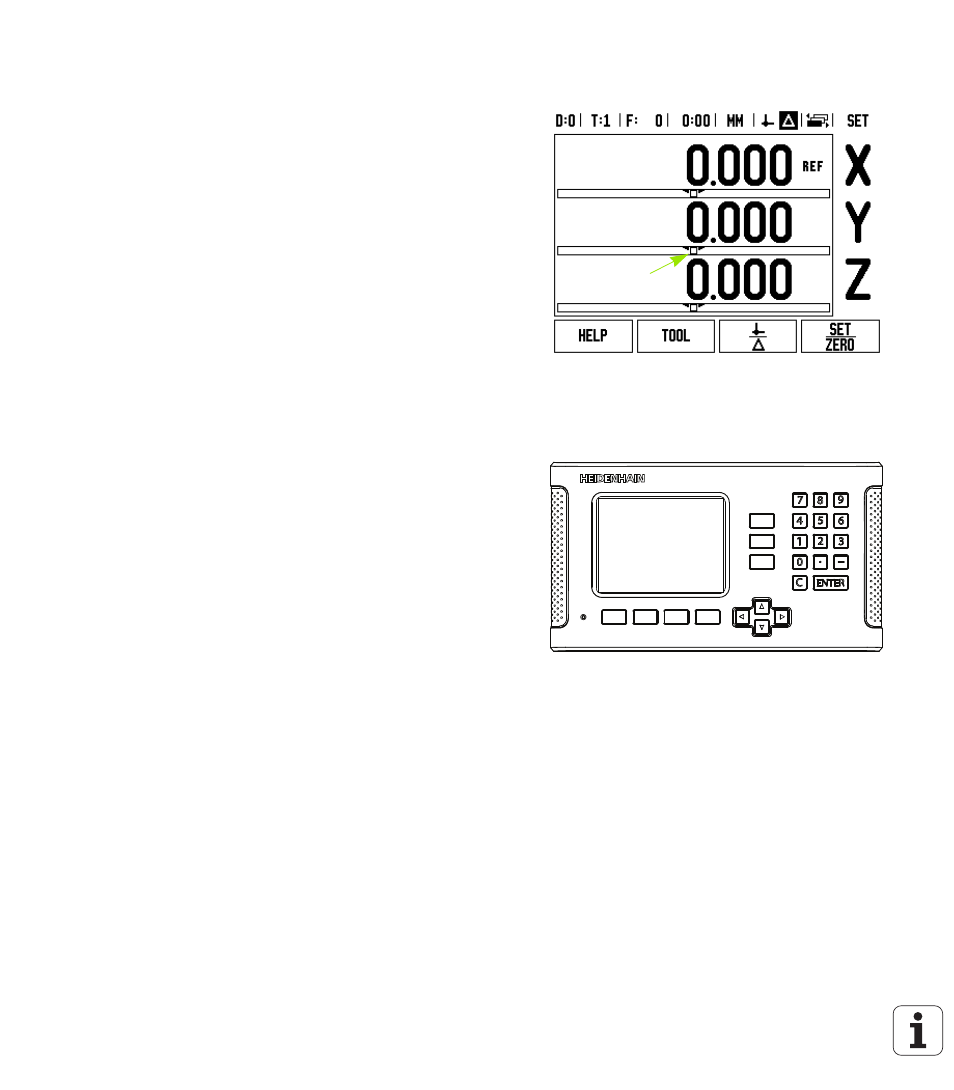

ND 780 Screen
View of the ND 780 screen defining typical information provided.
ND 780 Front Panel
View of the ND 780 front panel defining keys, and features.
1
2
3
4
5
6
7
8
9
14
13
12
11
10
1
Datum
2
Tools
3
Feed Rate
4
Stopwatch
5
Unit of Measure
6
Actual Value
7
Distance-To-Go
8
Page Indicator
9
Set/Zero
10
Axis Label
11
Ref Symbol
12
Soft Key Functions
13
Graphic Positioning Aid
14
Display Area
6
7
8
9
4
2
1
3
5
1
Axis keys (3) - X, Y, & Z
2
Numeric input keys
3
ENTER key, confirm entry, and select entry field
4
CLEAR key
5
ARROW keys
6
SOFT KEYS that functions vary depending on the current screen
shown
7
Power indicatior light
8
Display screen
9
Handle grips
