I - 2 General Operations for ND 780

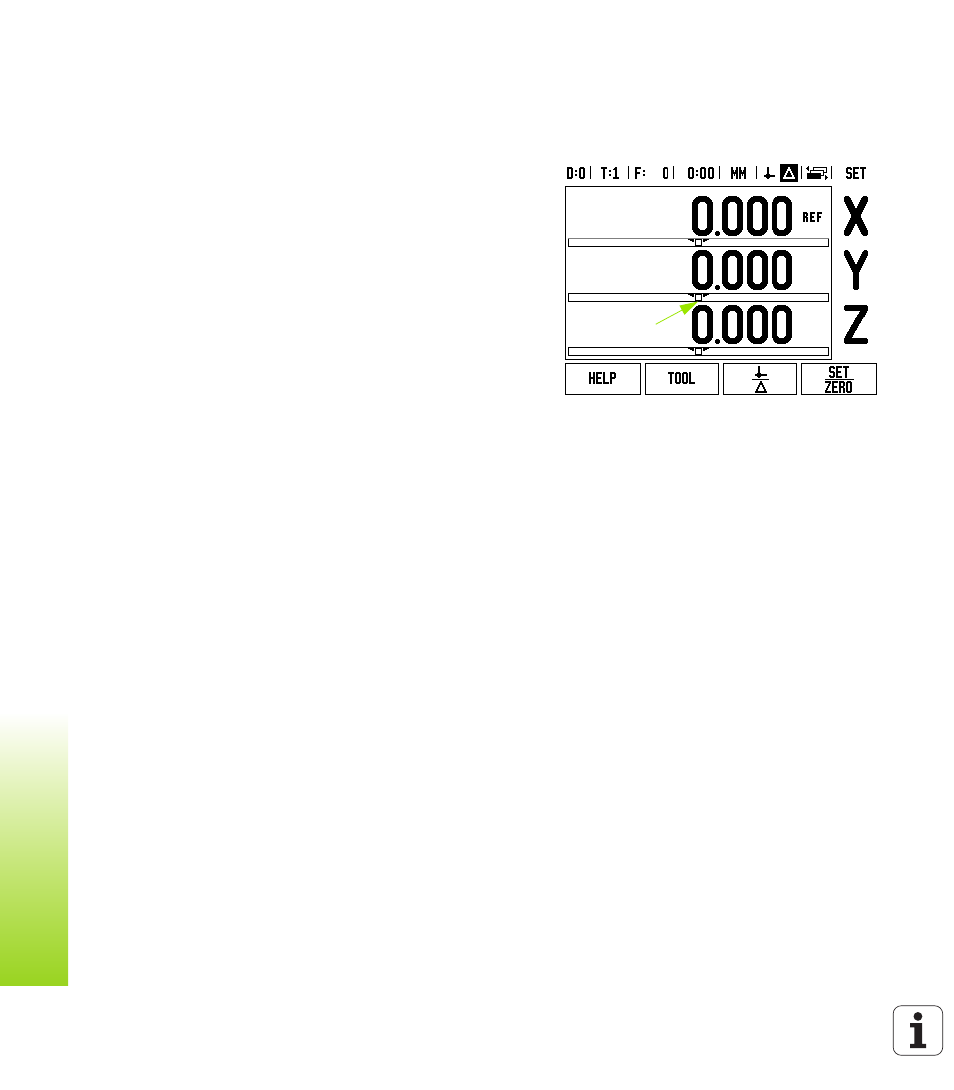

Screen Layout
Status Bar Symbols:
The ND 780 readout provides application-specific features that allows
the most productivity from manual machine tools.
Status Bar
- This displays the current datum, tool, feed rate, stop
watch time, unit of measure, distance-to-go (incremental), or actual
value (absolute) status, page indicator, and set/zero. See Job Setup
for details on setting up the Status Bar parameters.
Display Area
- Indicates the current position of each axis. Also
shows forms, fields, instruction boxes, error messages and
help topics.
Axis Labels
- Indicates axis for corresponding axis key.
Ref Symbols
- Indicates current reference mar status.
Soft key Labels
- Indicates the various milling or turning functions.
1
Datum
2
Tool
3
Feed Rate
4
Stopwatch
5
Unit of Measure
6
Actual Value
7
Distance-To-Go
8
Page Indicator
9
Set/Zero
10
Axis Labels
11
Reference Symbol
12
Soft key Labels
13
Display Area
14
Graphic Positioning Aid (In Distance-To-Go mode only)
10
11
4
5
1
6
7
8
8
2
1
12
13
14
3
9
