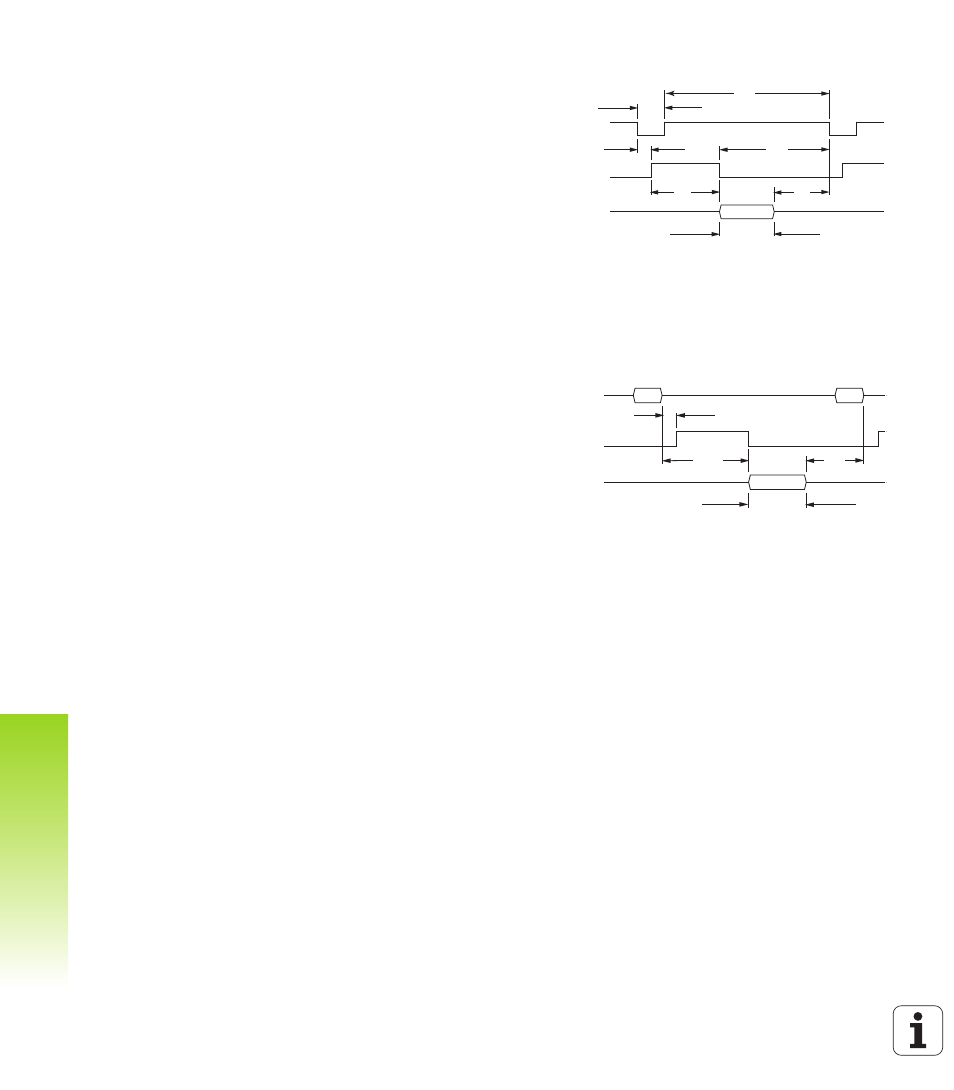

Delay times for data output
Latch signal pulse width
t
e
1.2 us
Storage delay
t
1
0.8 us
Data output
t
2
30 ms (typ.)
Data duration
t
D
Regeneration time
t
3
0 ms
Latch setup time
t
4
50 ms (typ.)
Latch signal setup time
t
5
50 ms (typ.)
Duration of data bits in seconds:
t
D
= B•(A • (L + C + 13) + T • C) / BaudRate
Delay times for data output (<Ctrl>B)
Storage delay
t
1
30 ms (typ.)
Data output
t
2
30 ms (typ.)
Data duration
t
D
Regeneration time
t
3
0 ms
Duration of data bits in seconds:
t
D
= B•(A • (L + C + 13) + T • C) / BaudRate
t
5
t
1
t
4
t
3
t
2
t
D
t
e
Signal In
RS-232
Data Out
t
D
t
3
t
2
t
1
RS-232
Data In
RS-232
Data Out
