68
I Operating Instructions
I - 3 Milling Specific Oper
ations

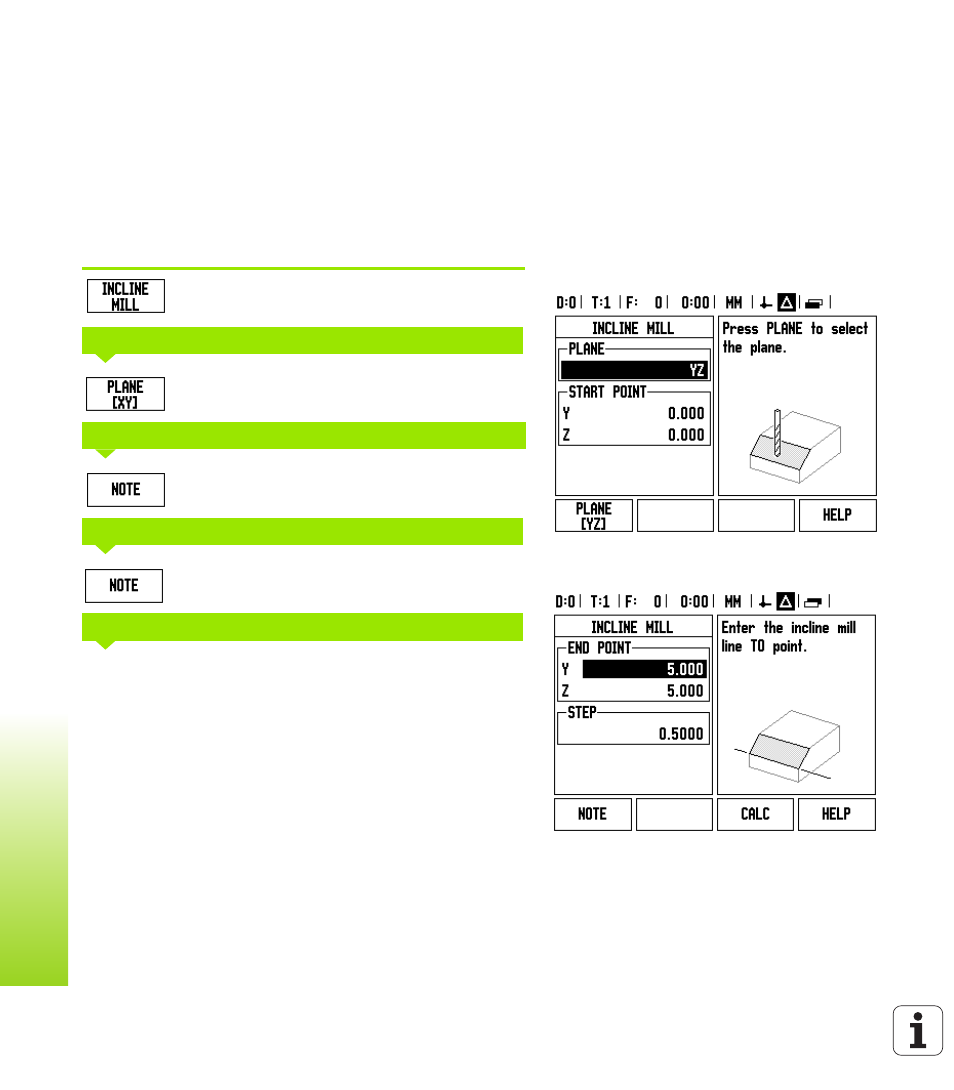

Incline Mill Soft Key
Information required:
 Plane: The axis the tool will travel.
 Start point: beginning of the line.
 End point: end of the line.
 Step: (optional) distance the tool will move between each cut.
 The cutting path is defined in either a positive, or negative direction
by how the start, and end points are defined.
1st Step: Enter data
Press INCLINE MILL soft key to open form, and enter
data.
Press the PLANE soft key repeatedly until the correct
plane is shown, along with a graphic of the plane.
Enter the coordinates of the start point, or press
NOTE to set the coordinate to the current position.
Enter the coordinates of the end point, or press NOTE
to set the coordinate to current position.
Enter the step dimension (optional). This is the cut
depth for each pass along the line.
PLANE SELECTION
START POINT
END POINT
STEP
