I - 4 Turning Specific Operations
Soft Keys Functions Detailed
This section discusses operations and soft key functions specific to
turning applications only. Soft key functions that are the same,
whether the ND 780 is configured for Mill or Turn applications, are
detailed starting on Page 34.
Turning Specific Display Icons
Tool Soft Key
The ND 780 can store the dimensional offsets for up to 16 tools. When
you change a workpiece and establish a new datum, all tools are
automatically referenced from the new datum.
Before you can use a tool, you must enter its offset (the cutting edge
position). Tool offsets can be set using the TOOL/SET or NOTE/SET
features.
If you have measured your tools using a tool presetter, the offsets may
be entered directly.
To access the Tool Table menu:
Press the TOOL soft key.
The cursor will default to the Tool Table field.
Scroll to the tool you want to define. Press ENTER.
Function Display Icon
This is used to indicate that the displayed value
is a diameter value. No icon visible indicates that
the display is a radius value.
Ø

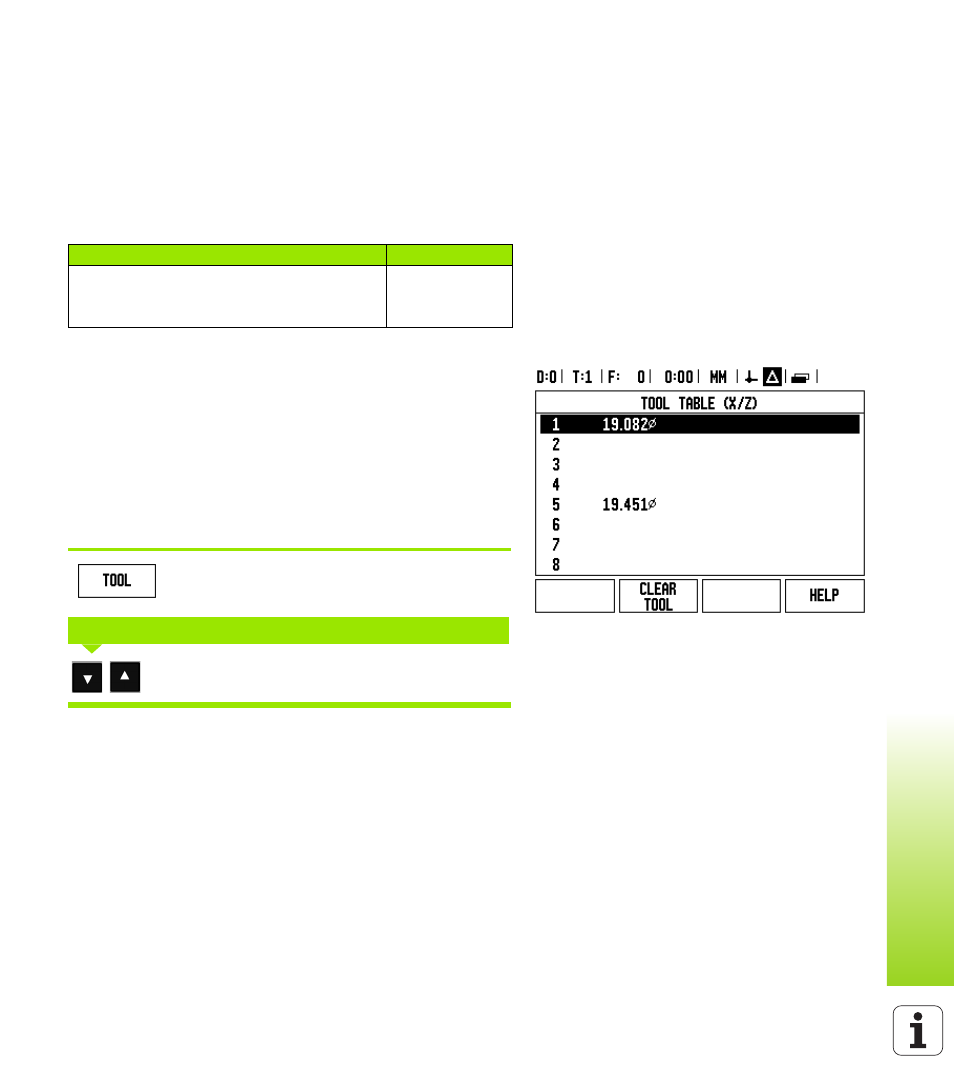

TOOL TABLE
