General Navigation
 Use keypad to enter numeric values within each field.
 The ENTER key will confirm the entry within a field, and return to the
previous screen.
 Press the C key to clear entries, and error messages, or return back
to the previous screen. One exception to this. The “Non-linear Error
Compensation Table” uses the C key to save the data input.
 SOFT KEY labels show the various milling, or turning functions.
These functions are selected by pressing the corresponding soft key
directly below each soft key label. There are 3 pages of selectable
soft key functions. These are accessed using the LEFT/RIGHT arrow
keys as indicated below.
 The LEFT/RIGHT arrow keys move through pages 1 - 3 of the soft
key selectable functions. The current page will be highlighted in the
Status bar at the top of screen.
 Use the UP/DOWN arrow keys to move between fields within a
form and list boxes within a menu. The orientation of the cursor is
such that it will return to the top once it has reached the bottom of
the menu.
General Overview

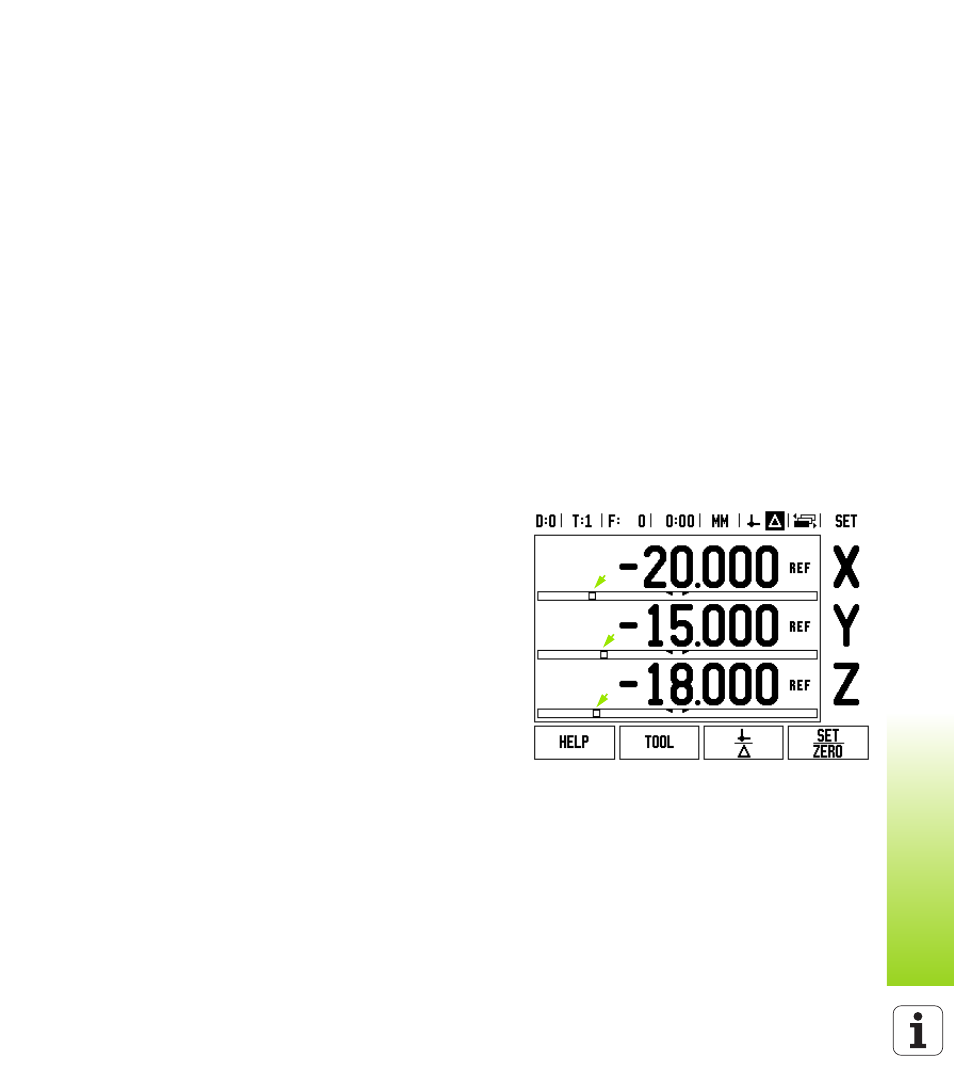

Graphic Positioning Aid
When traversing to display value zero (in the Distance-To-Go mode),
ND 780 displays a graphic positioning aid.
ND 780 displays the graphic positioning aid in a narrow rectangle
underneath the currently active axis. Two triangular marks in the
center of the rectangle symbolize the nominal position.
A small square symbolizes the axis slide. An arrow indicating the
direction appears in the square while the axis is moving towards, or
away from the nominal position. Note that the square does not begin
to move until the axis slide is near the nominal position. Setting up the
graphic positioning aid, see “Graphic Positioning Aid” on page 29
under Job Setup.
