HEIDENHAIN ND 780 - Handbuch (Seite 147)

ND 780
23
I - 2 Gener
a
l Oper
ations f
o
r ND 780

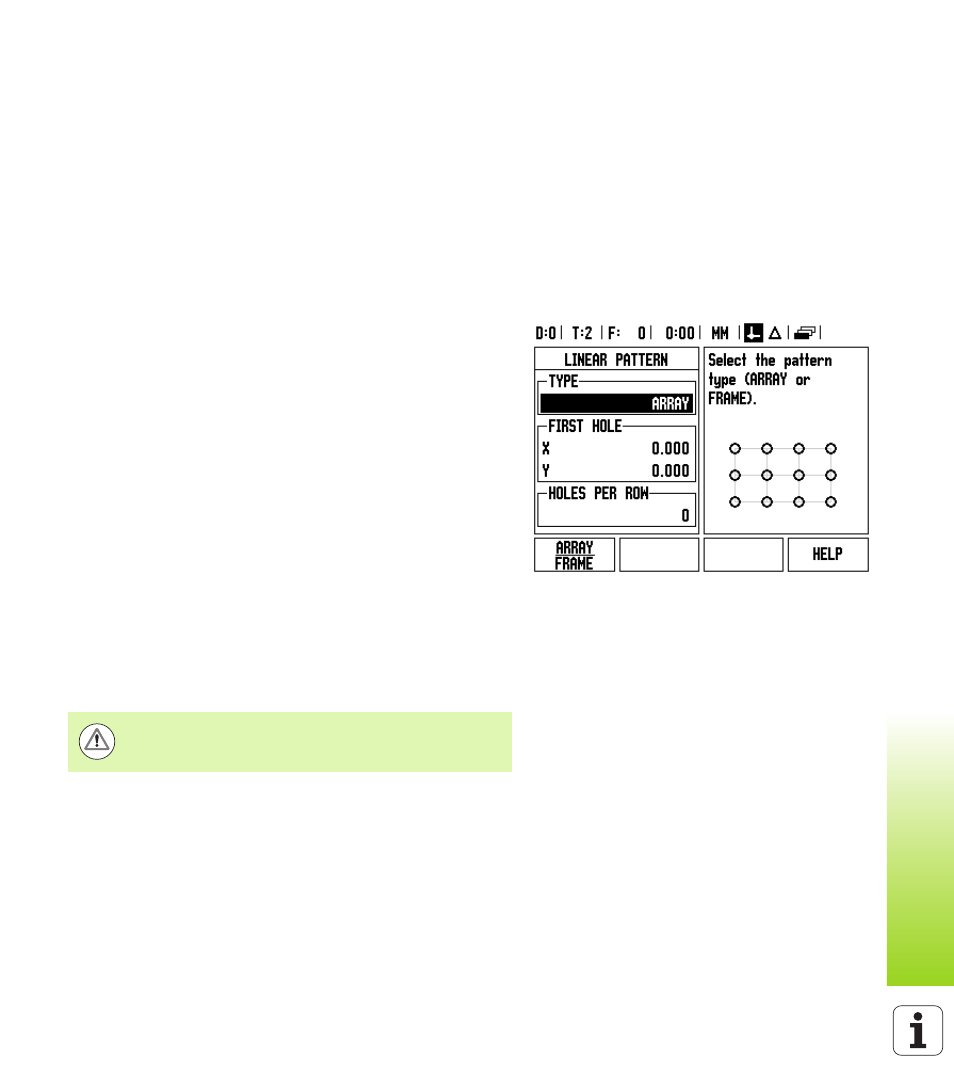

Data Input Forms
Information required for various operational functions and setup
parameters are entered through a data input form. These forms will
appear after selecting features that require any additional information.
Each form provides specific fields for entering the required
information.
Changes must be confirmed by pressing the ENTER key for them to
become effective. If you do not want to save your changes, press the
C key to return to the previous screen without saving changes.
In some cases such as the Tool Table, the C key is used in place of the
ENTER key.
Instruction Box messages
Whenever a Menu, or Form is opened, an instruction box will also
open immediately to the right of it. This message box will provide
information for what the chosen function does, and present
instructions for available options.
Error Messages
If an error occurs while working with the ND 780, the message will
appear on the display, and provide an explanation of what caused the
error. See "Error Messages" on page 113
To clear the error message:
 Press the C key.
If this message is received:
 Turn off the ND 780.
 Wait approximately 10 seconds, then turn the ND 780 on.
 Error message will be cleared, and normal operation can be
continued.
Critical error message: Interrupts not running.
