ND 780
57
I - 3 Milling Specific Oper
ations

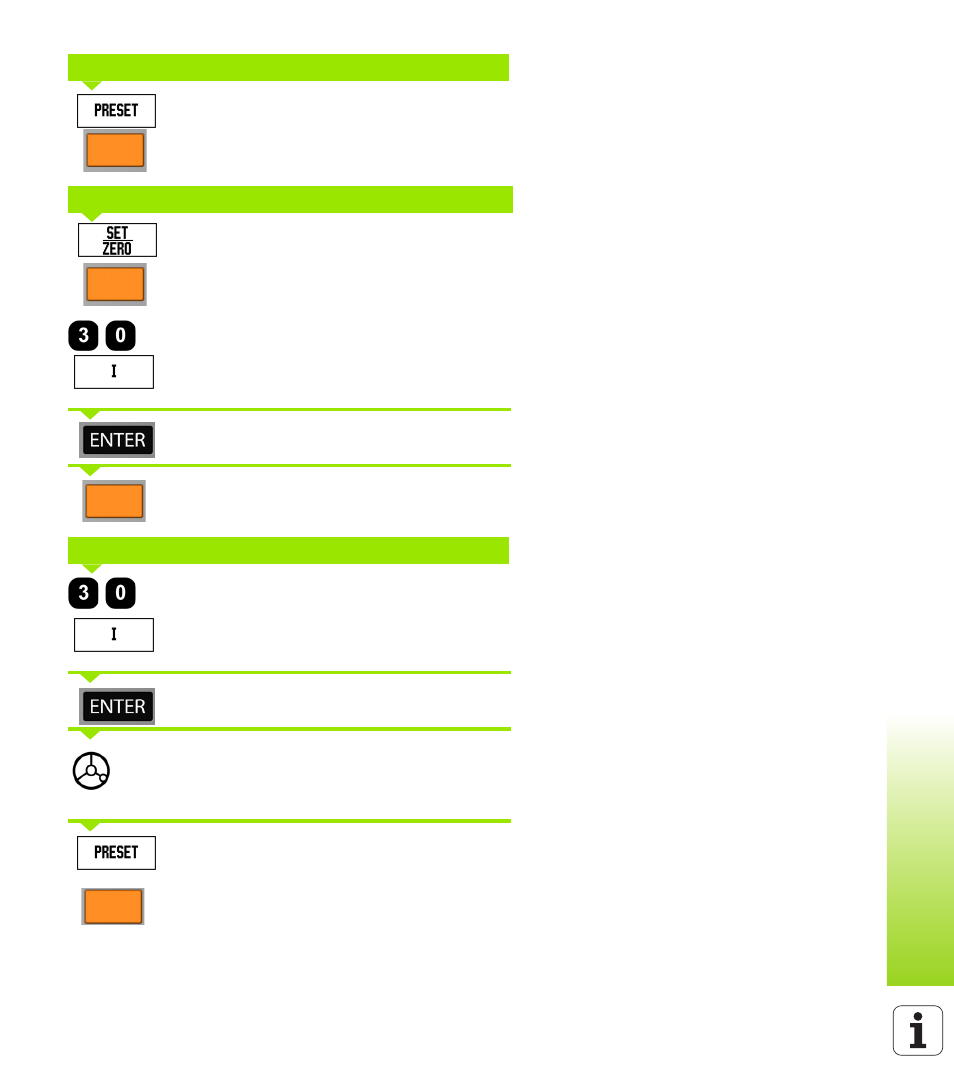

Press the PRESET soft key.
Press the X axis key
Press the SET/ZERO soft key so that you are in Set
mode.
Press the X axis key.
Enter nominal position value for hole 2 : X = 30 mm,
mark your input as an incremental dimension, press I
soft key.
Press ENTER.
Press the Y axis key.
Enter nominal position value for hole 2 : Y = 30 mm,
mark your input as an incremental dimension, press I
soft key.
Press ENTER.
Traverse the X and Y axes until the display value is
zero. The square in the graphic positioning aid is now
centered between the two triangular marks.
Press the PRESET soft key.
Press the Z axis key.
NOMINAL POSITION VALUE
- ALTERNATIVE METHOD -
NOMINAL POSITION VALUE
