I - 3 Milling Specific Oper
ations
Features (Milling)
Pressing the FEATURES soft key will provide access to the Circle
Pattern, Linear Pattern, Incline Mill, and Arc Mill milling features.
The ND 780 provides one user definable pattern each of these
features. They can be recalled, and executed from the DRO anytime
during operation.
The following soft keys are available while in the Milling Feature table.
The Circle Pattern, and Linear Pattern features provide ways to
calculate, and machine various hole patterns. The Incline, and Arc
milling features provide ways to machine a flat diagonal surface
(incline milling), or a rounded surface (arc milling) using a
manual machine.

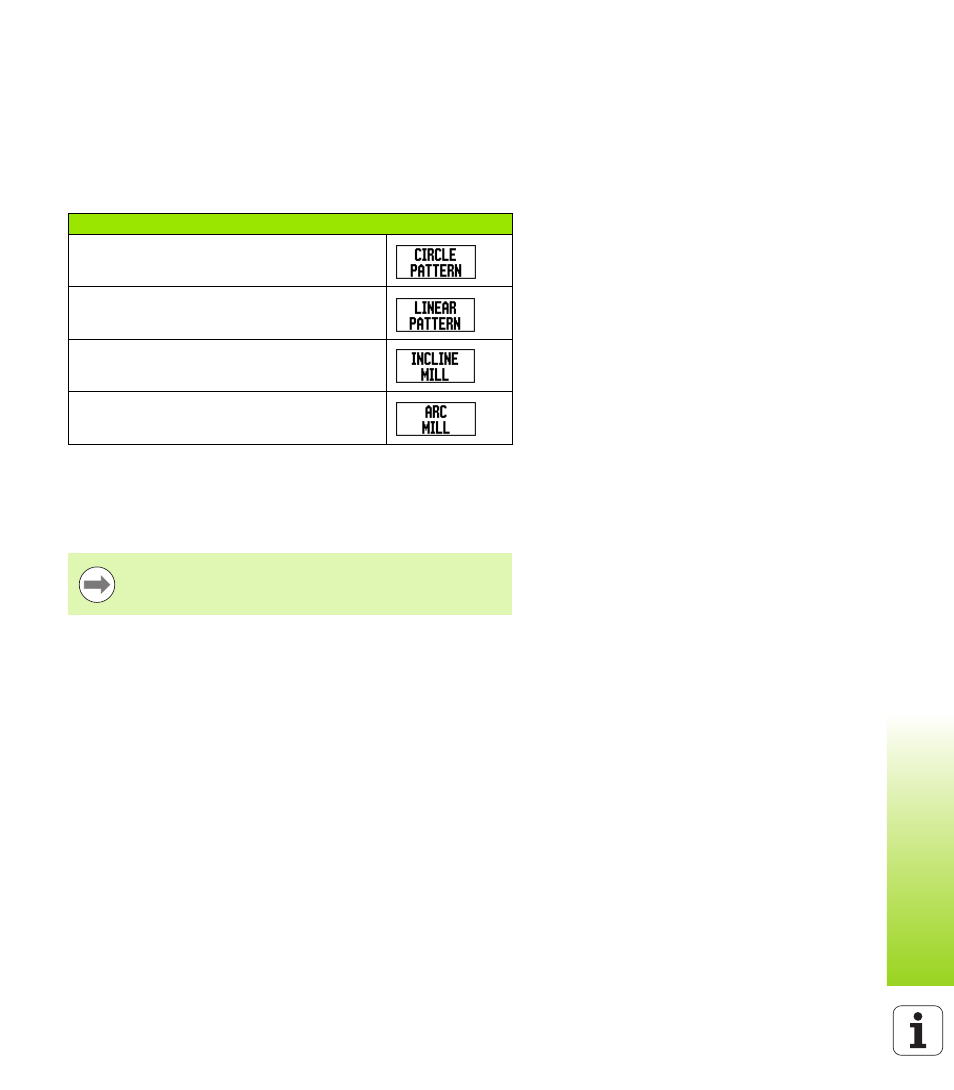

Function Soft key
Press to access the Circle Pattern entry form.
Press to access the Linear Pattern entry form.
Press to access the Incline Mill entry form.
Press to access the Arc Mill entry form.
Defined Circle, Linear, Incline, and Arc patterns are
remembered when power is cycled.
