I Operating Instructions
I - 3 Milling Specific Oper
ations
I - 3 Milling Specific Operations
Soft Key Functions Detailed
This section discusses operations, and soft key functions specific to
milling applications. Soft key functions are the same for both Mill, or
Turn applications.
Tool Soft Key
The soft key opens the Tool Table, and provides access to the Tool
Form for entering a tool’s parameters. The ND 780 can store up to 16
tools within the tool table.
Tool Table
The ND 780’s tool table provides a convenient way to store a tool, and
its specifications such as diameter, length, unit of measurement
(in/mm), type of tool, direction of rotation, and RPM speed.
The following soft keys are available while in the Tool Table form, or in
the individual Tool Data form:

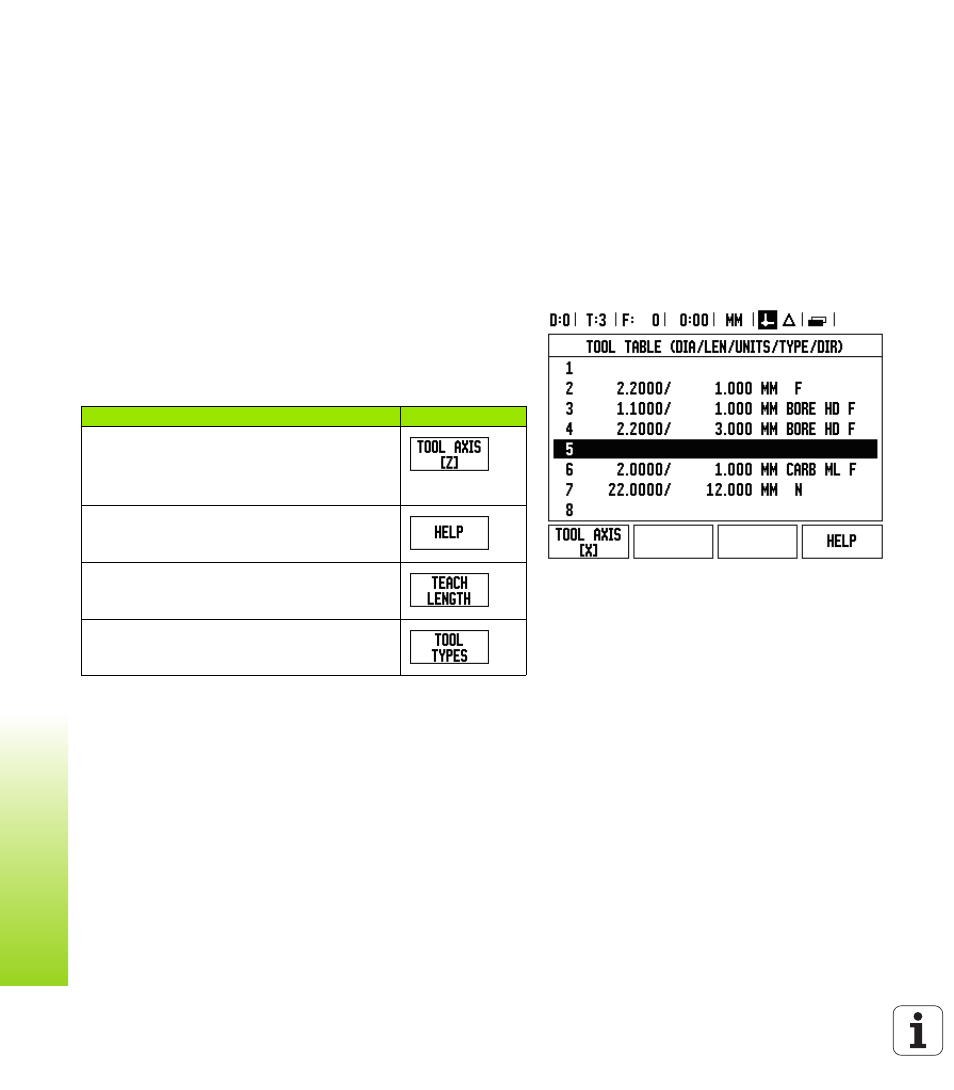

Function Soft key
This key allows the operator to select which axis
all the tool length offsets will effect. The tool’s
diameter values will subsequently be used to
offset the remaining two axes.
Press access available help files.
Press to automatically enter the tool offset
length. Only available in Tool Length field.
This will open the Tool Types form for selection.
Only available in Type field.
